K4NYW Patch Panel Info

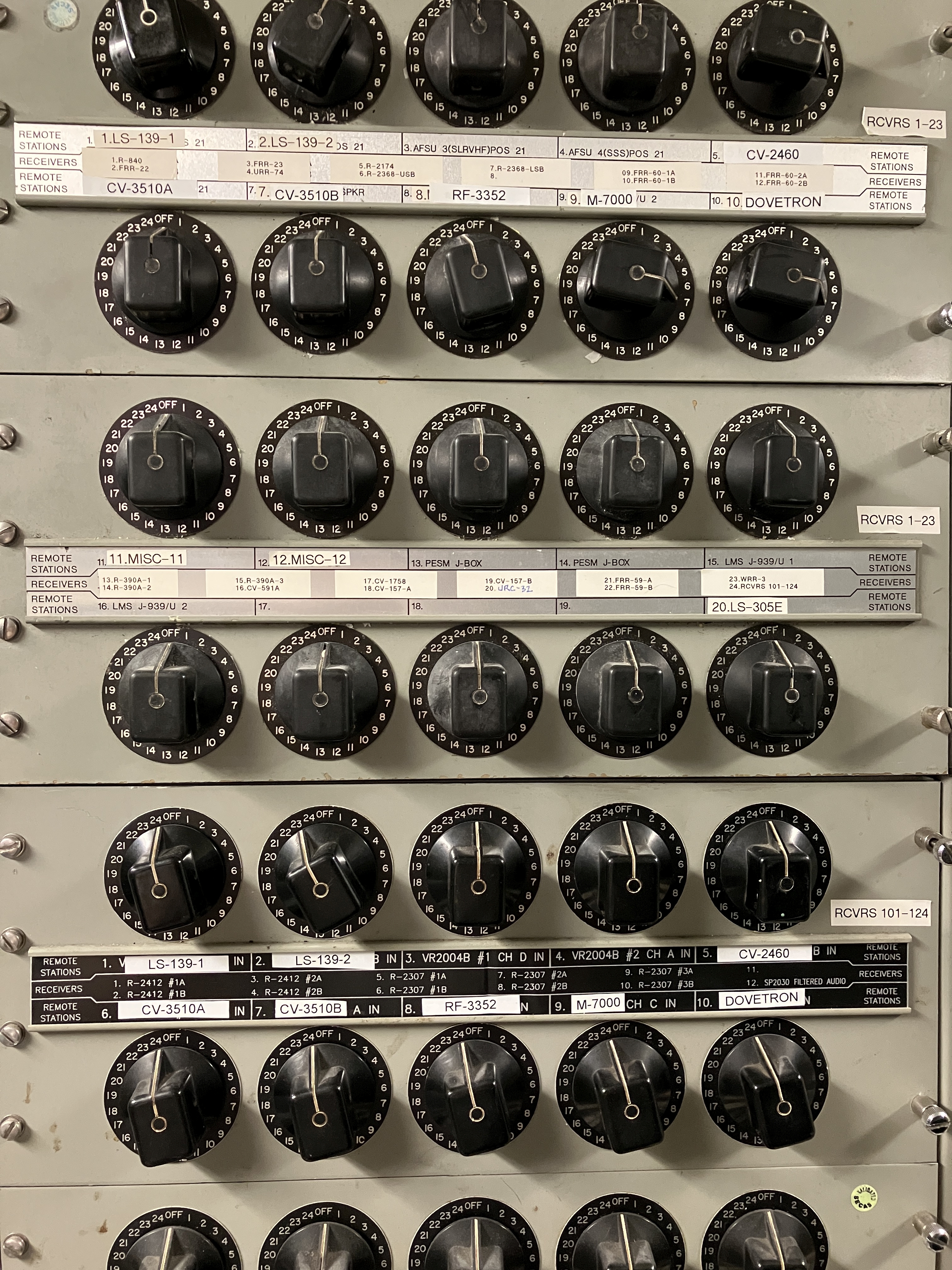

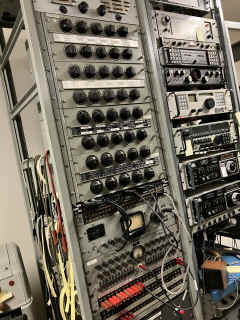

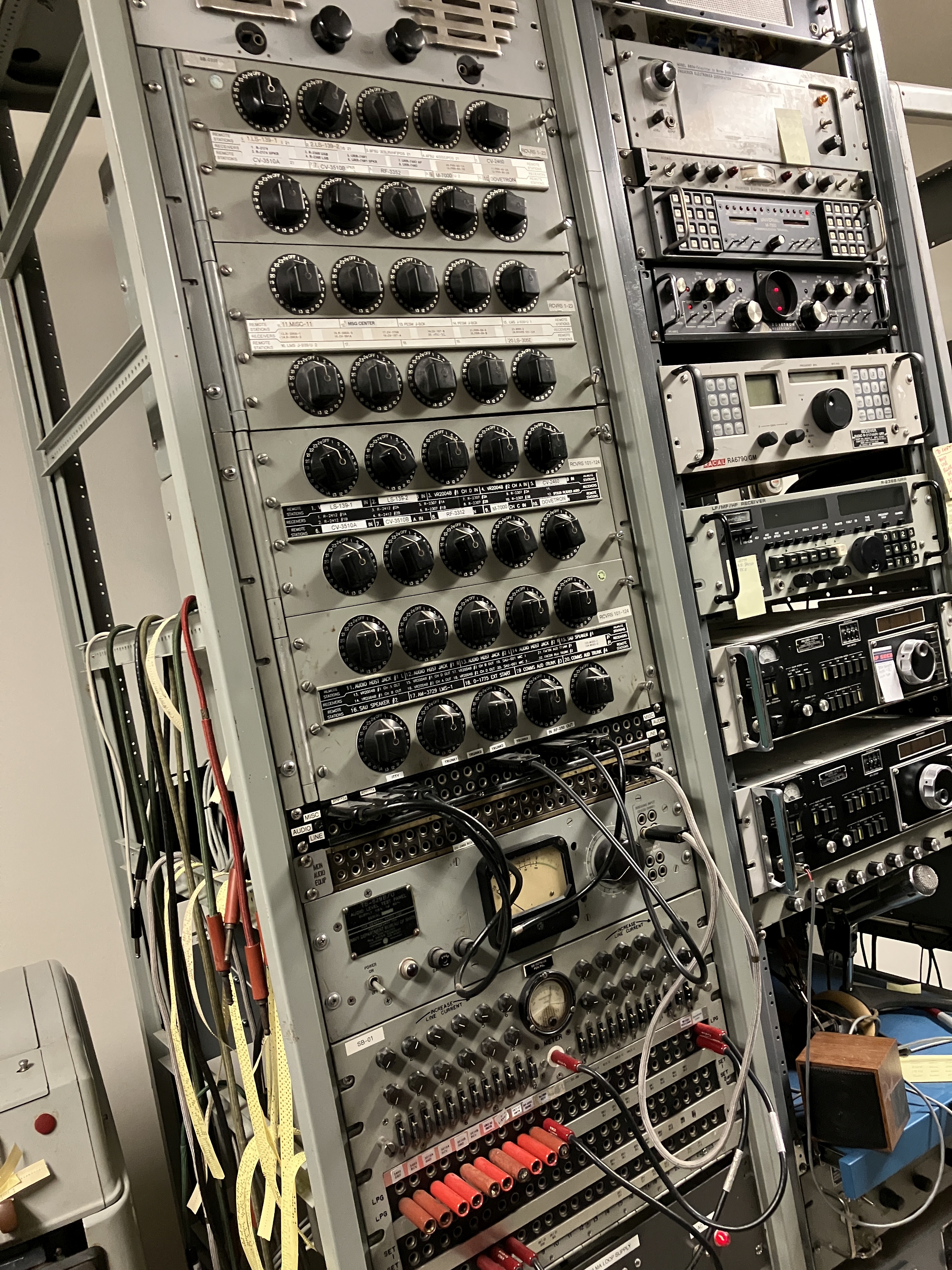

SB-2727 AUDIO SWITCHBOARDS
RCVR AF SRC
|
===
|
RCVR AF SRC
|
===
|
RCVR AF DESTS
|
| RCVR |
EQUIP |
CABLE |
RCVR |
EQUIP |
CABLE |
REMOTE |
EQUIP |
CABLE |
| 1 |
R-2174 ? |
38-brn |
101 |
- |
- |
1 |
LS-139-1 |
red-org |
| 2 |
R-2174 local |
38-org |
102 |
- |
- |
2 |
LS-139-2 |
grn-blu |
| 3 |
R-2368 USB |
38-grn |
103 |
- |
- |
3 |
n/c |
-- |
| 4 |
R-2368 LSB |
38-blu |
104 |
- |
- |
4 |
n/c |
-- |
| 5 |
URR-74-1 local |
39-brn |
105 |
- |
- |
5 |
CV-2460 in |
jack-05 (28 brn) |
| 6 |
URR-74-1 ? |
39-org |
106 |
- |
- |
6 |
CV-3510A in |
jack-06 (28 org) |
| 7 |
URR-74-2 |
39-grn |
107 |
- |
- |
7 |
CV-3510B in |
jack-07 (28 grn) |
| 8 |
URR-74-2 ? |
39-blu |
108 |
- |
- |
8 |
RF-3352 in |
jack-08 (28 blu) |
| 9 |
FRR-60 1A |
23-brn |
109 |
- |
- |
9 |
M-7000 in |
jack-09 (40 brn) |
| 10 |
FRR-60 1B |
23-org |
110 |
- |
- |
10 |
Dovetron in |
jack-10 (40 org) |
| 11 |
FRR-60 2A |
23-grn |
111 |
- |
- |
11 |
n/c |
jack-11 (40 grn) |
| 12 |
FRR-60 2B |
23-blu |
112 |
- |
- |
12 |
Fred 1203 in |
jack-12 (40 blu) |
| 13 |
R-390A #1 |
24-brn |
113 |
- |
- |
13 |
URA-8-2 in |
27-brn |
| 14 |
R-390A #2 |
24-org |
114 |
- |
- |
14 |
|
27-org |
| 15 |
R-390A #3 |
24-grn |
115 |
- |
- |
15 |
|
27-grn |
| 16 |
CV-591A |
24-blu |
116 |
- |
- |
16 |
|
27-blu |
| 17 |
CV-1758 |
25-brn |
117 |
- |
- |
17 |
n/c |
- |
| 18 |
CV-157 A |
25-org |
118 |
- |
- |
18 |
n/c |
- |
| 19 |
CV-157 B |
25-grn |
119 |
- |
- |
19 |
n/c |
- |
| 20 |
URC-32 |
25-blu |
120 |
- |
- |
20 |
n/c |
- |
| 21 |
FRR-59 A |
26-brn |
121 |
- |
- |
|
|
|
| 22 |
FRR-59 B |
26-org |
122 |
- |
- |
|
|
|
| 23 |
WRR-3 |
26-grn |
123 |
MISC-1 JACK in |
- |
|
|
|
| 24 |
101-124 |
--- |
124 |
MISC-2 JACK in |
- |
|
|
|

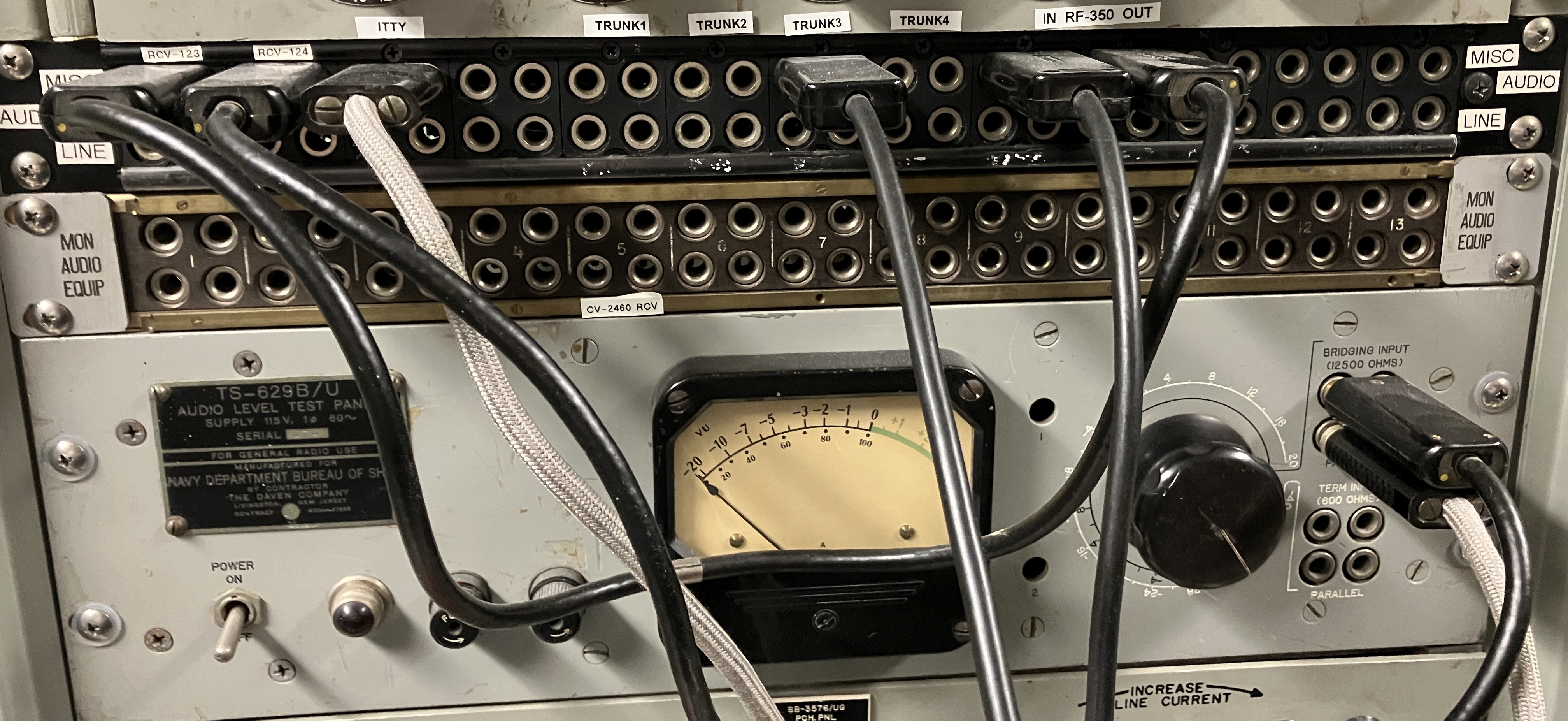

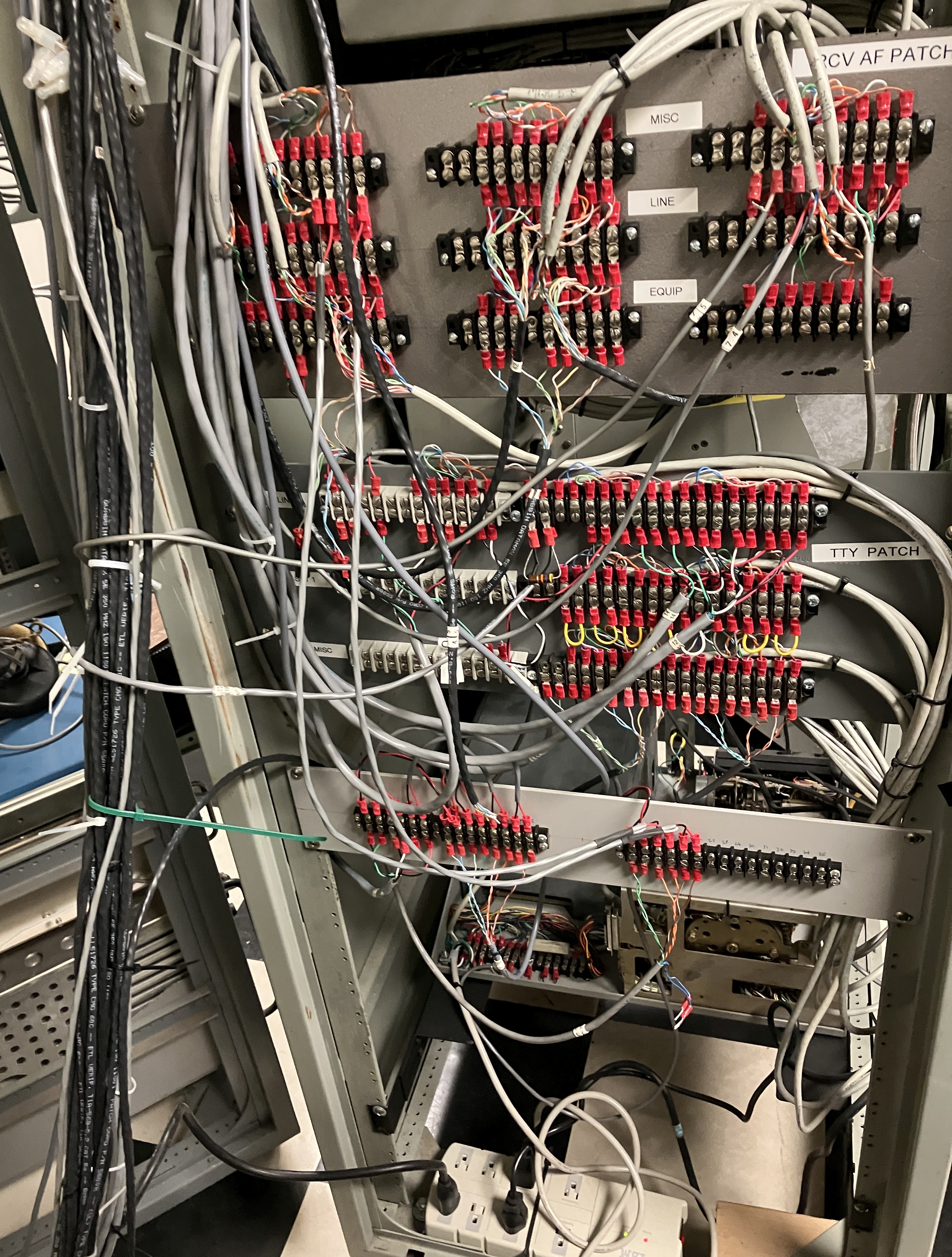

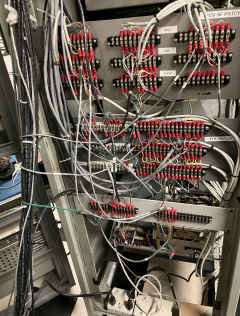

AUDIO JACK PANELS
RCVR AF JACKS
|
| JACK |
MISC |
CABLE |
==== |
LINE |
EQUIP |
| 1 |
RCVR-123 in |
32-red |
== |
- |
| 2 |
RCVR-124 in |
32-grn |
== |
- |
| 3 |
ITTY out |
computer |
== |
- |
| 4 |
- |
shielded |
== |
- |
| 5 |
XMTR TRUNK-1 |
42-brn |
jack-05 |
28-brn |
| 6 |
XMTR TRUNK-2 |
42-org |
jack-06 |
28-org |
| 7 |
XMTR TRUNK-3 |
42-grn |
jack-07 |
28-grn |
| 8 |
XMTR TRUNK-4 |
42-blu |
jack-08 |
28-blu |
| 9 |
RF-350 in |
brn |
jack-09 |
40-brn |
| 10 |
RF-350 out |
org |
jack-10 |
40-org |
| 11 |
== |
|
jack-11 |
40-grn |
| 12 |
== |
|
jack-12 |
40-blu |
| 13 |
== |
|
--------------- |
|

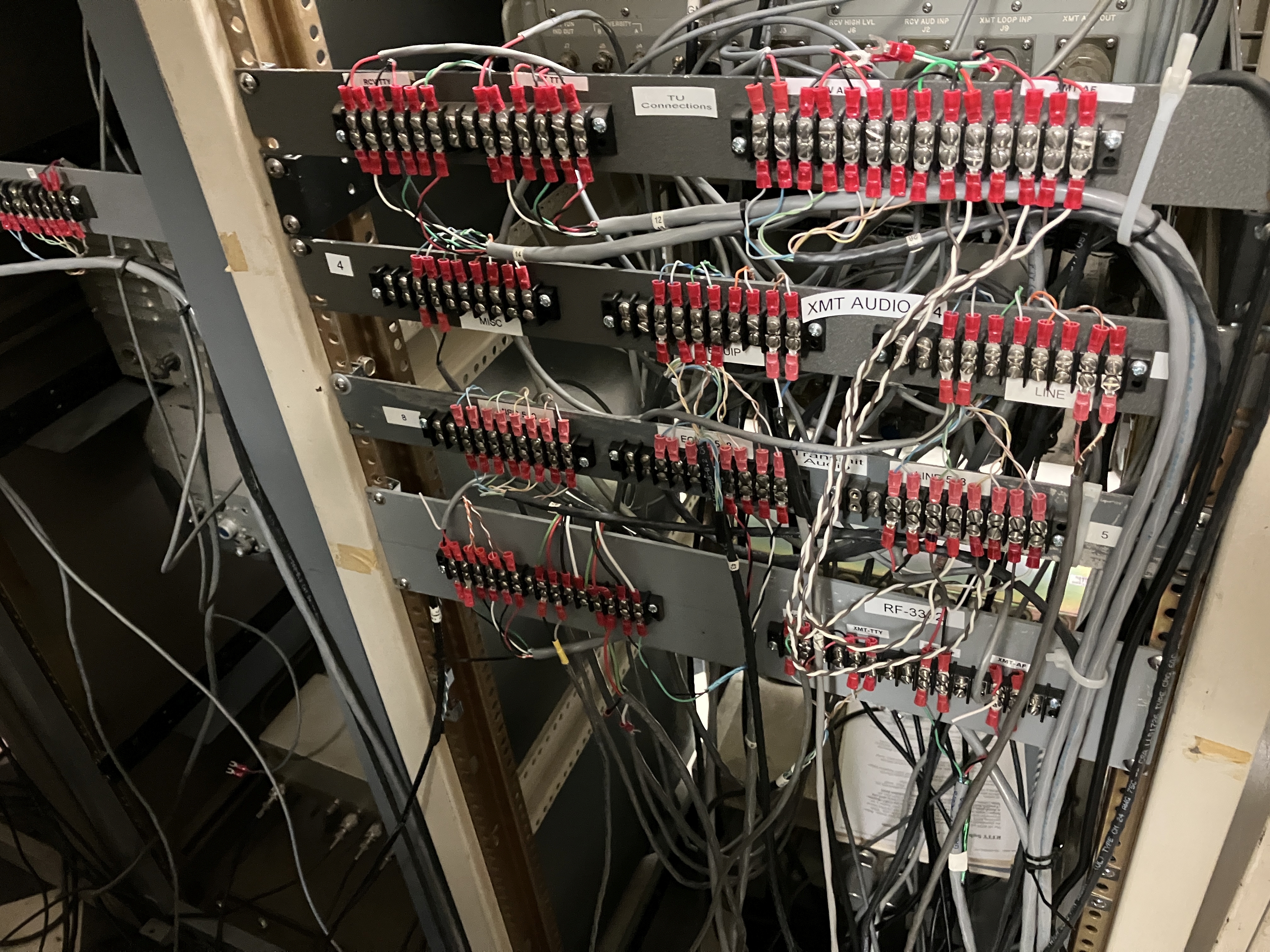

XMTR AF JACKS
|
| JACK |
LINE |
EQUIP |
=== |
MISC |
CABLE |
| 1 |
MIKE out |
FRT-17 in |
|
|
| 2 |
== |
- |
|
|
| 3 |
== |
SBE-1 in (43 brn) |
|
|
| 4 |
AM-413 out |
SBE-2 in (43 org) |
AM-413 in |
|
| 5 |
CV-2460 out |
SBG-1 in (44 wh) |
XMTR TRUNK-1 |
42-brn |
| 6 |
CV-3510A out |
SBG-2 in (44 red) |
XMTR TRUNK-2 |
42-org |
| 7 |
CV-3510B out |
- |
XMTR TRUNK-3 |
42-grn |
| 8 |
RF-3552 out |
- |
XMTR TRUNK-4 |
42-blu |
| 9 |
== |
- |
|
|
| 10 |
== |
- |
|
|
| 11 |
== |
- |
|
|
| 12 |
== |
|
|
|
| 13 |
--------------- |
|
|
|
